| № SAP |
30005003 |
| Партномер |
SRXCOOL12K |
Описание
SMARTRACK™ Series

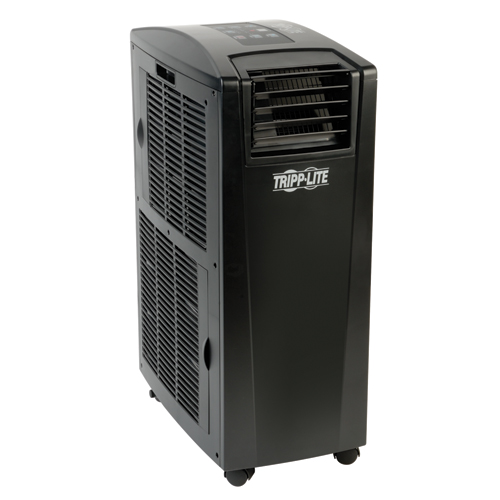

SRXCOOL12K
230V Portable Air Conditioning Unit for IT Equipment in Small Server Rooms and Network Closets
Got a hot spot? Fix it and forget about it with the SRXCOOL12K portable AC unit. It automatically evaporates condensation and safely removes it through the exhaust, so you won’t have to install a drain or constantly empty a water tank. The SRXCOOL12K’s portable, no-maintenance design makes it the perfect choice for cooling network wiring closets, small server rooms or anywhere with a hot spot. Connect the SRCOOLNET for remote cooling management and monitoring from anywhere there's an Internet connection!
Compact, portable, self-contained design reduces maintenance—no water collection tank or drain requiredRolls into place on built-in casters; does not require an external condenser, refrigerant piping or hiring outside contractorsCool a 500 square foot room with 12,000 BTU of cooling powerOffers both hot-spot and general room cooling with two exchangeable vent stylesFilters and dehumidifies air to protect equipmentAuto-restart feature retains all system settings and returns unit back to its last operational state after AC power is restoredAllows you to monitor temperatures, receive alerts, review logs and control settings from any location (requires SRCOOLNET accessory)
Overview
With 12,000BTU of cooling power, the 230V, 50 Hz SRXCOOL12K is ideal for use in data centers, server and wiring closets, IT environments, home and small business offices, conference rooms, warehouses, entertainment centers or other venues with heat-sensitive equipment, particularly in areas that facility air conditioning can't reach. The SRXCOOL12K not only adjusts ambient room temperatures, but can also dehumidify and filter the air, providing better air quality for enhanced equipment performance with minimal noise and power consumption.
The SRXCOOL12K has a built-in evaporator that expels the condensed water through the exhaust duct, so there is no need for a drain tube, drain pan or water collection tank. Both a standard louvered vent (for general room cooling) and a directional ducted cooling vent (to direct cold air where most needed) are provided. A directional exhaust duct safely removes hot air from the room. SRXCOOL12K comes equipped with an auto-restart feature that retains all system settings and returns the unit back to its last operational state after AC power is restored. A built-in timer enables the unit to be programmed for unattended start-up and shutdown. Controls and displays are conveniently mounted on the top panel. With the optional added accessory of the SRCOOLNET, this communication port allows users to monitor temperatures, receive alerts, review logs and control settings from any location. Designed for quick and simple installation, the SRXCOOL12K rolls into place on built-in casters and plugs into a standard Schuko CEE7 outlet. An included window/drop ceiling kit provides multiple installation options.
The SRXCOOL12K uses environmentally friendly R410a refrigerant, which complies with EPA standards for 2010 and beyond, and is accepted worldwide.
Key Features
12,000 BTU of cooling power can cool a 500 square foot roomUses environmentally friendly R410a refrigerantNo water collection tank required. A built-in evaporator expels condensate into the exhaust air stream meaning no drain tube, drain pan or water collection tank that needs to be emptied every few hoursCold air output can be precisely directed through a 71" flexible tube to the 'hot spot' for better, faster cooling. (Standard louvered insert is also included for general room cooling)Auto-restart feature retains all system settings and returns the unit back to its last operational state after AC power is restoredCommunication port allows users to monitor temperatures, receive alerts, review logs and control settings from any location (requires SRCOOLNET accessory)Compact, portable, self-contained design; ideal for IT, industrial, commercial and similar applicationsQuick and easy installation. Plugs into a standard Schuko CEE7 outletWindow/drop ceiling installation kit is included for extracting heatOffers 3 different cycles (cool, dehumidify and fan)Cools in confined spaces where facility air conditioning can't reachDehumidifies and filters air to promote more efficient equipment performanceBuilt-in timer for automatic unattended start-up and shutdownSystem lock function disables all other buttons to prevent accidental inputQuiet operation with minimal power consumptionConvenient top-mounted controls and displays220-240V AC input, 50 Hz frequency compatibility
Typical Applications
Supplemental cooling for confined server rooms where the facility HVAC is inadequate or unavailable.
Package Includes
SRXCOOL12K cooling unitLouvered front ventDirectional front ventCold Air directional delivery tubeHot exhaust air removal tubeDropped ceiling or window heat ventilation kitWarranty informationInstruction manual
Specifications
OVERVIEWModel TypeActive CoolingINPUTNominal Input Voltage(s) Supported220V AC; 230V AC; 240V ACInput connection typeSchuko CEE7Input cord length (ft.)6Input cord length (m)1.8LEDS ALARMS & SWITCHESFront panel LEDsTouch sensitive control panel with multiple LEDs and numerical temperature readoutPHYSICALShipping Dimensions (HWD/in)33.46 x 15.16 x 29.13Shipping Dimensions (HWD/cm)85 x 38.5 x 74Shipping weight (lbs)77.25Shipping weight (kg)34.76Unit Dimensions (HWD/in)30.63 x 11.81 x 19.88Unit Dimensions (HWD/cm)77.8 x 30 x 50.5Unit weight (lbs)73.9Unit weight (kg)33.5Material of constructionABSColorBlackForm factors supportedTowerENVIRONMENTALCooling Capacity12,000 BTU / 3.5 kWSPECIAL FEATURESDehumidifier2.5lbs / hourCompressor TypeRotaryRefrigerantR410a (Environmentally friendly, Non ozone depleting)Refrigerant Amount22 oz.Air FlowEvaporator = 329 CFM / Condenser = 311 CFMAmp Draw Nominal7-10ASound Level (Noise)57dBAir Supply Tube Length71 inchesAir Exhaust Tube Length118 inchesAir Exhaust Tube Diameter5.16 inchesCERTIFICATIONSCertificationsTested to CE; RoHSWARRANTYProduct Warranty Period (Worldwide)1-year limited warranty
