| № SAP |
30010271 |
| Партномер |
SR12UB |
Описание
SMARTRACK™ Series
SR12UB

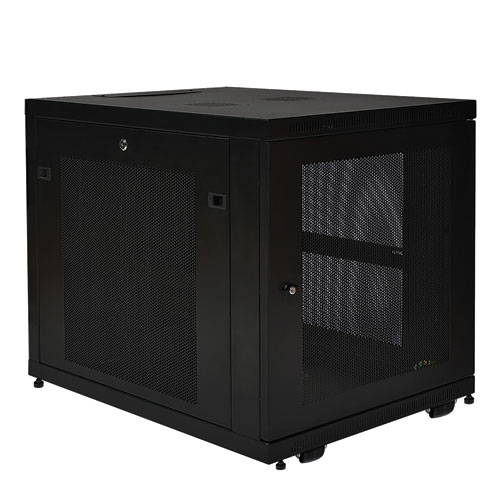

SmartRack 12U Extra Depth Rack Enclosure Cabinet
12U with adjustable front and rear vertical rackmount railsExtended depth of 33" allow for standard server installationLocking, reversible front door and locking, removable side panelsFully assembled for quick installationCasters and leveling feetMeets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance
Краткое описание
Tripp Lite’s SR12UB premium SmartRack 12U Enclosure Cabinet is packed with features designed to simplify rack equipment installations and rack equipment maintenance: top and bottom cable routing ports, perforated door and side panels to promote efficient airflow, adjustable vertical mounting rails and more. And as part of the SmartRack family, the SR12UB is compatible with Tripp Lite’s extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement. The SR12UB ships fully assembled for quick installation and comes with a 5-year warranty.
The SR12UB is compatible with all standard 19-inch rack equipment and features front and rear pairs of vertical rails with square mounting holes. The rails are adjustable in quarter-inch increments to accommodate equipment depths from 3 to 32.5 inches, ideal for standard server installation. Adjustment is quick and convenient: simply unscrew the rails, slide them to the desired depth and restore the screws. The rails feature square mounting holes and are capable of supporting up to 250 lbs of equipment with included installation hardware. Each rack space within the enclosure is numbered for easy reference.
With a locking, reversible front door and locking, removable side panels, the SR12UB provides safe, secure installation for all equipment. This prevents unauthorized access to installed equipment while making it easy for authorized personnel to perform inspections, maintenance and equipment replacement. The enclosure meets all requirements toward PCI DSS compliance.
The top and bottom panels of the SR12UB are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. They also support installation of standard user-supplied case fans (Tripp Lite SRFANWM). The top and bottom panels are also provided with ports for cable routing.
To simplify deployment, the SR12UB comes with an accessory caster kit consisting of 4 casters and all required installation hardware. With casters installed, the SR12UB can easily be maneuvered into to desired location, and then secured in place by adjusting the unit’s levelers. Note: the casters are intended for minor position adjustments within the final installation area only and are not designed for moving the enclosure over long distances.
Основные характеристики
12U extra deep enclosureAdjustable mounting depths from 3" to 32.5" inchesLocking, reversible front doorLocking, removable side panelsTop and bottom panel cable access openingsFully assembled for quick installationCasters and leveling feetMeets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance
В комплект поставки входят
SR12UB Rack Enclosure(36) M6 screws(36) M6 cage nuts(36) M6 washersSRACASTER kit (includes 4 casters)(2) keysOwner's Manual
Технические спецификации
ФИЗИЧЕСКИЕ ПАРАМЕТРЫМаксимальная глубина установленной в стойку системы (дюймы)32.5Максимальная глубина установленной в стойку системы (см)82.6Минимальная глубина установленной в стойку системы (дюйм)3Высота шкафа12UГабаритные размеры в упаковке (ВхШхГ, дюйм)29.7 x 27 x 36.6Габаритные размеры в упаковке (ВхШхГ, см)75.44x 68.58 x 92.96Масса брутто (фунты)123Масса брутто (кг)55.79Габаритные размеры (дюймы)EXTERNAL DIMENSIONS: 25.1 x 23.63 x 33.5 (HWD)Масса прибора (фунты)105Масса прибора (кг)47.63Габаритные размеры (см)63.75 x 60.02 x 85.09ЦветЧерныйТипFloor StandingНесущая способность – для закрепленного оборудования (фунты)250Единиц на поддоне1Величина отверстия для ввода кабеля (в дюймах)9.812 x 2.35 (l x w)СПЕЦИАЛЬНЫЕ ВОЗМОЖНОСТИКлемма заземленияFront and Back door framesСЕРТИФИКАЦИИСертификацииEIA-310-EСтандарт NOM (Мексика)Tested to NOM (Mexico)УтвержденияUL60950; RoHSГАРАНТИЯ Гарантийный период (все страны)Ограниченная гарантия 5 лет
